Are you the content provider, HEVC STB supplier, or Telco/DTH operator, Media Cloud center? The T603E series transcoder platform is ideal for high-end live and workflows for contribution and distribution. Offering video quality and proven reliability, T603E transcoder is the perfect solution for content gathering and head-end processing with the performance to deliver the video quality HD/SD. Content distributers, aggregators, broadcasters and operators can capture, contribute and distribute live video content with efficiency and confidence.
T603E is a single/multiple channels, dense, high-performance transcoder with the unique versatility to encode video in HEVC HD 60 fps for live content. Its unmatched operating footprint delivers competitive advantage in terms of power consumption, rack space and operating requirements.

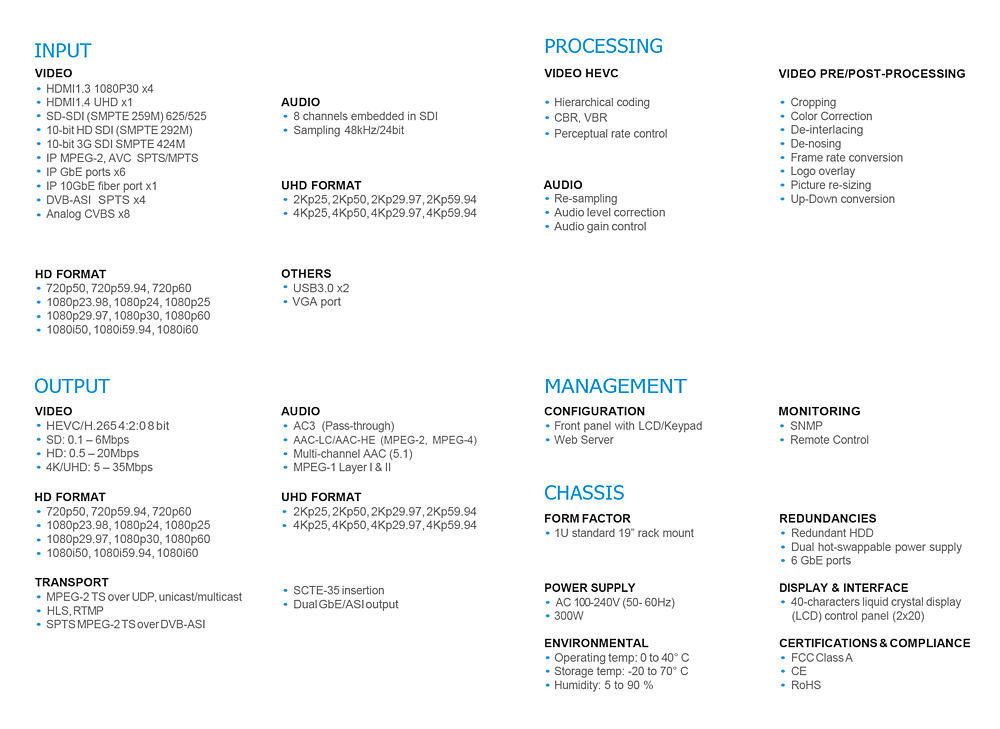

*specification is subject to change without notice

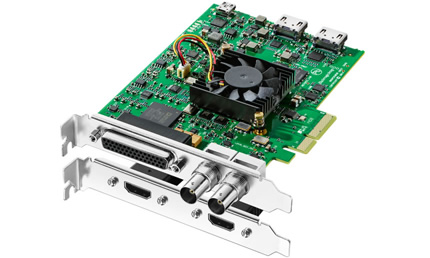

Input Capture card & Output card/module
Choose the model that best suite your needs
VIDEO INPUTS\MODEL |
IP-GbE |
HDMI-HD-30 |
HDMI-HD-60 |
HDMI-uHD |
DVI-HD-60 |
SDI-HD-30 |
SDI-HD-60 |
SDI-6G |
SDI-6G + Audio |
ASI |
ANALOG |
IP GbE 8x In/Outputs |
|
|
|
|
|
|
|
|
|
|
|
HDMI 1080p30 4x capture card |
|
|
|
|
|
|
|
|
|
|
|
HDMI 1080p60 2x capture card |
|
|
|
|
|
|
|
|
|
|
|
HDMI uHDp30 1x capture card |
|
|
|
|
|
|
|
|
|
|
|
DVI 1080p60 2x capture card |
|
|
|
|
|
|
|
|
|
|
|
SDI-1080p30 4x Capture card |
|
|
|
|
|
|
|
|
|
|
|
SDI-1080p60 2x Capture card |
|
|
|
|
|
|
|
|
|
|
|
SDI-6G 1x Capture card |
|
|
|
|
|
|
|
|
|
|
|
SDI-6G + Audio 1x Capture card |
|
|
|
|
|
|
|
|
|
|
|
DVB-ASI 4x Inputs card |
|
|
|
|
|
|
|
|
|
|
|
Analog CVBS 8x Capture card |
|
|
|
|
|
|
|
|
|
|
|
(Optional) DVB-ASI 2x Out card |
|
|
|
|
|
|
|
|
|
|
|

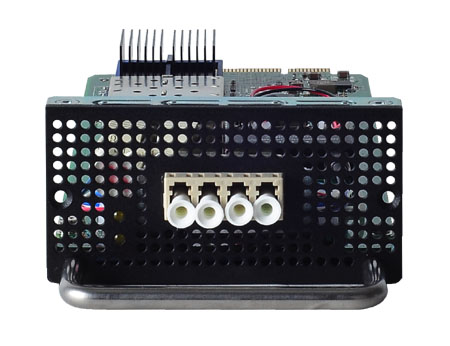

(Optional) Fiber-10GbE 2x module |
|
|
|
|
|
|
|
|
|
|
|

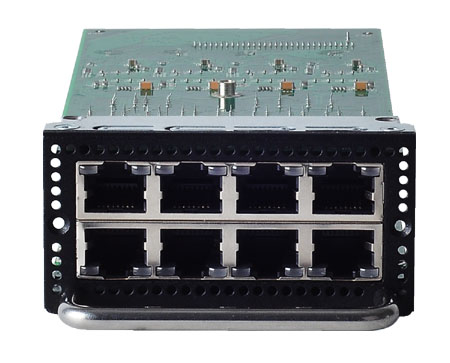

(Optional) GbE 8x module |
|
|
|
|
|
|
|
|
|
|
|
(Optional) GbE 16x module |
|
|
|
|
|
|
|
|
|
|
|
(Optional) 10GbE 1x card |
|
|
|
|
|
|
|
|
|
|
|
(Optional) IPMI card |
|
|
|
|
|
|
|
|
|
|
|
System Order information
Product item |
Description |
Order NO. |
Basic T603 |
1U IP GbE system, 6 in/outputs Source |
T603E-6-IP-GbE |
|
1U HDMI HD system, 1 input Source |
T603E-1-HDMI-HD60 |
|
1U HDMI HD system, 2 inputs Source |
T603E-2-HDMI-HD30 |
|
1U 3G-SDI system, 1 input Source |
T603E-1-SDI-HD60 |
|
1U HD-SDI system, 2 inputs Source |
T603E-2-SDI-HD30 |
|
1U ASI system, 2 inputs Source |
T603E-2-ASI-HD30 |
|
1U Analog CVBS system, 8 inputs Source |
T603E-8-CVBS-SD |
Optional |
DVB-ASI card, 2 outputs |
2-ASI-OUT |
IP Fiber-10GbE module, 2 inputs |
T603E-2-IP-10GbE-SFP |
|
IP Copper 10GbE card, 1 input |
T603E-1-IP-10GbE |
|
IP Copper GbE module, 8 inputs |
T603E-8-IP-GbE |
|
IP Copper GbE module, 16 inputs |
T603E-16-IP-GbE |
|
IPMI remote monitor card |
T603E-IPMI |
|
Management |
1U Multiple machines manage system |
T600 |
