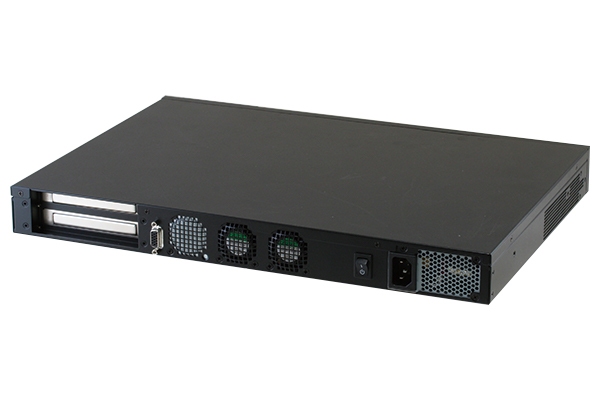

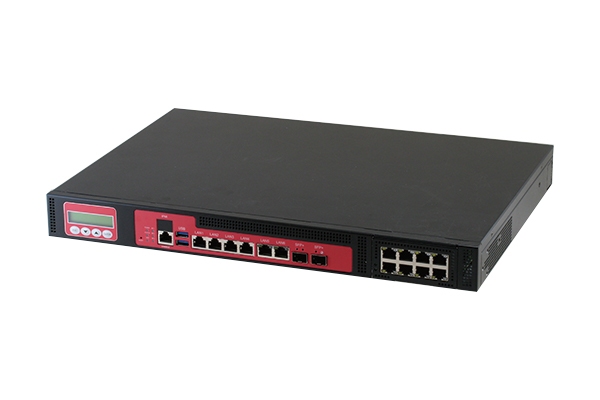

T603E live hevc encoder
T603E live hevc encoder

Input Capture card & Output card

I/O Interface Table



VIDEO INPUTS\MODEL

 IP

 HDMI-4K30

 HDMI-HD60

 HDMI-HD30

SDI-6G

SDI-6G+

SDI-3G

SDI-HD

 DVI

 ASI

IP GbE 8x In/Outputs

















IP GbE 4x In/Outputs





HDMI 4Kp30 capture card



















HDMI HD60 2x capture card



















HDMI HD30 4x capture card



















SDI-4Kp30 Capture card



















SDI-4Kp30 + analog Capture card



















SDI-1080p60 2x Capture card



















SDI-1080p30 4x Capture card



















DVI-4Kp30 4x Capture card



















DVB-ASI 4x Inputs card



















(Optional) DVB-ASI 2x Out card

(Optional) 10GbE card



















(Optional) 10GbE 2x module



















(Optional) GbE 4x fiber module



















(Optional) GbE 8x module



















(Optional) Media storage, 2 x SSD

System bootup screen shot & Web server

T603E live hevc encoder T603D live hevc encoder

Technical Spec

CPU



Multi cores

GPU



Build-in hardware

Memory



16 GB

Video capture Interface

Input

6G-SDI,3G-SDIx2 ,HD-SDI x4, HDMI x4, x2, x1
DVI x1
Color sample 4:2:2, YUV 8/10 bit

Audio

Input

16 channels embedded in HD or 8 channels embedded in SD.
8 channels embedded in HDMI
XLR Analog 4 Channels of professional balanced
AES/EBU 2 Channels unbalanced

Storage

OS/AP
Media

2.5" SSD x2 Redundant
2.5" SSD x2 (OTT/HLS Optional)

Ethernet IO, DVB-ASI IO



GbE x6/rj45 + SFP x2
ASI-in x4 , ASI-out x2 (Optional)
1GbE x8 (Optional)
10GbE x2 (Optional)

USB



3.0x2

Display



VGA

OS



WES10-64

Application Software



De-mux, H265/H264/MPEG2 decoder, Capture, HEVC encoder, Mux,Streaming

Wrappers



Resolution 2160p24/25/29.97/30, 1080p24/25/29.97/30/50/59.94/60, 720p50/59.94/60, 576p25/480p29.97, MPEG2-TS  (UDP, RTP)

Video Audio Essences



MPEG2,H264-AVC (Baseline, Main, High), HEVC/H.265 (Main, Main10)
MPEG layer 1/2 , AAC-LC/AAC-HEV1/AAC-HEV2, AC-3/EAC3 Pass through
AC-3/EAC-3 or multi-PCM encoding (Optional)

Metadata



Closed Caption EIA-608, EIA-708
DVB subtitles
Teletext subtitles

Preprocessing



Audio level correction, Audio re-sampling, Cropping, Color Correction,
Current time insertion on the video image,
Frame rate conversion, Logo overlay, Picture re-sizing

Video Decoder



MPEG2, H264-AVC, H265

Video Encoder



Profile: HEVC 4:2:0 Main 8, Main 10, Base/Main/High Tier
Rate Control: VBR, CBR, fixed QP

Quality Performance



Fastest, Fast, Higher, Highest, Auto

Streaming Output



MPEG2-TS UDP/RTP
HTTP Live streaming Apple HLS
RTSP
MPEG-DASH
RTMP

Streaming input



MPEG2-TS UDP/RTP
HTTP Live streaming Apple HLS
RTSP
MPEG-DASH

Redundant



N+M

Remote Management



Build-in embedded Web Server, SNMP and command line

Power Supply



250 Watts 100~ 240V AC input, 50-60HZ or Redundant (Optional)

LED



Power/Status/HDD

Switch



Power, Hardware Reset

System Fan



4 cm x3

Certificate



FCC class A /CE, ROHS Compliant

Working Environment

Temperature

0~40℃

Indoor

Humidity

5% ~ 90%, non-condensing



MTBF

Over 90,000 hours



Physical

Dimension

430x 44x 305 mm

*specification is subject to change without notice

System Order information

Product item

 Description

Order NO.

Basic T603E3

1U IP GbE system, 8 in/outputs Source

T603E3-8-IP-GbE



1U HDMI 4K30 system, 1 input Source

T603E3-1-HDMI-uHD30



1U HDMI HD60 system, 2 inputs Source

T603E3-2-HDMI-HD60



1U HDMI HD30 system, 4 inputs Source

T603E3-4-HDMI-HD30



1U 6G-SDI system, 1 input Source

T603E3-1-SDI-uHD30



1U 6G-SDI+ system, 1 input Source

T603E3-1-SDI-uHD30+



1U 3G-SDI system, 2 inputs Source

T603E3-2-SDI-HD60



1U HD-SDI system, 4 inputs Source

T603E3-4-SDI-HD30



1U DVI system, 1 input Source

T603E3-1-DVI-uHD30



1U ASI system, 4 inputs Source

T603E3-4-ASI-HD30

Optional

Redundant Power





DVB-ASI card, 2 outputs





Copper 10GbE card, 1 input





Copper 10GbE module, 2 inputs





NIC GbE fiber module, 4 inputs





Copper NIC GbE module, 8 inputs





Media storage, 2 x SSD





Dolby Digital (AC-3), Dolby Digital Plus (EAC-3) or multi-PCM encoding



Management

1U Multiple machines manage system

T600

4K 2160
HEVC Group
H264 Group
