T603E live hevc encoder
IP transcoder, 3U rack 12 blades front side
T603E live hevc encoder
IP transcoder, 3U rack 12 blades rear side
T603E live hevc encoder
IP transcoder, 3U rack 14 blades front side
T603E live hevc encoder
IP transcoder, 3U rack 14 blades rear side
T603E live hevc encoder
IP transcoder, 3U rack 8 blades front side
T603E live hevc encoder
IP transcoder, 3U rack 8 blades rear side

Input & Output IP streams

T603E live hevc encoder
T603E live hevc encoder

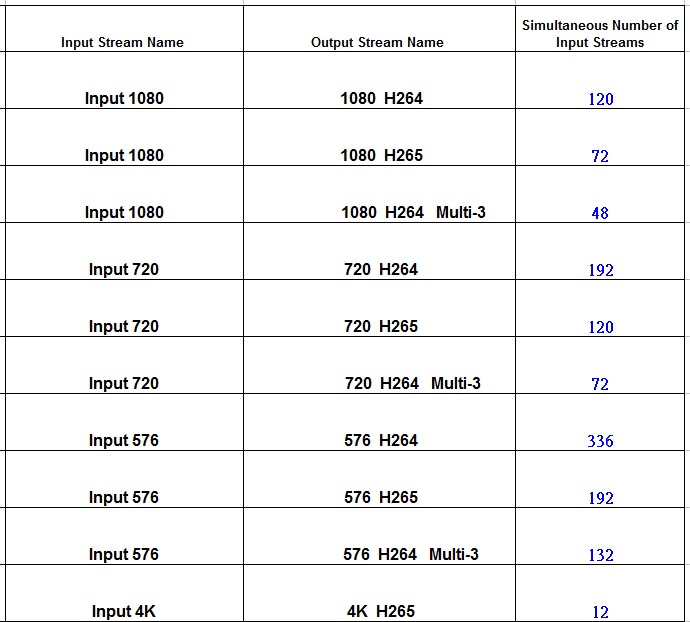

Transcoder Performance Table

T603E live hevc encoder
*The result is based on 3U 12 blades, the input/output 4:2:0 color sub-sample 8 bit streams

System bootup screen shot & remote Web server

T603E live hevc encoder T603D live hevc encoder

Technical Spec

Blades



Max 14 or 12 or 8 hot-plug blades, each blade equals 1 node

CPU



Per-node, Multi cores

GPU



Per-node, Build-in hardware

Memory



Per-node,16 GB

Storage

OS/AP
Media

Per-node, 2.5" SSD x2 Redundant
Per-node, 2.5" SSD (OTT/HLS/MPEG-DASH Optional)

Ethernet IO


Manage

Per-node, GbE x2 rj45
IPMI, rj45
Special x2 network switch, each switch has GbE x8 rj45, 10 GbE x4 SFP+
(14 blades)

KVM



Per-node, USB 2.0x2 + VGA + COM
Special Management Module, KVM over IP (14 blades)

OS



Per-node, Win10-64

Input interfaces



Ethernet IP or ASI (Optional, 8 blades)

Output interfaces



Ethernet IP or ASI (Optional, 8 blades)

Application Software



De-mux, H265/H264/MPEG2 decoder, HEVC encoder, Mux,Streaming
Remote web server management

Wrappers



Resolution 2160p24/25/29.97/30/50/59.94/60, 1080p24/25/29.97/30/50/60, 720p50/59.94/60, 576p25/480p29.97, MPEG2-TS  (UDP, RTP)

Video Audio Essences



MPEG2,H264-AVC(Baseline, Main, High), HEVC/H.265
MPEG layer 1/2, AAC-LC/AAC-HEV1, AC-3 Pass through
AC-3/EAC-3 or multi-PCM encoding (Optional)

Preprocessing



Deinterlacing, Aspect Ration Change, Picture re-sizing

Video Decoder



MPEG2, H264-AVC, H265

Video Encoder



Profile: HEVC 4:2:0 Main 8, Main 10, Base/Main/High Tier
Rate Control: VBR, CBR, fixed QP

Quality Performance



Fastest, Fast, Higher, Highest, Auto

Stream-Input



MPEG2-TS UDP/RTP
HTTP Live streaming Apple HLS
RTSP
MPEG-DASH

Stream-Output



MPEG2-TS UDP/RTP
HTTP Live streaming Apple HLS
RTSP
MPEG-DASH
RTMP

Streaming-Server Support



WOWZA Media Server
HTTP Live streaming Apple HLS (m3u8)

Redundant



N+M

Remote Management



Build-in embedded Web Server, SNMP and command line

Power Supply



Redundant 2000/1600 Watts, 100~ 240V AC input, 50-60HZ
or 2000 Watts, -44~ -66V DC input (Optional 14 blades)

LED



Power/Status/HDD

Switch



Power, Hardware Reset

System Fan



9 cm x4

Certificate



FCC class A /CE, ROHS Compliant

Working Environment

Temperature

10~35℃

Indoor

Humidity

8% ~ 90%, non-condensing



MTBF

Over 90,000 hours



Physical

Dimension

444x 132x 749 mm

*specification is subject to change without notice

System Order information

Product item

 Description

Order NO.

Basic T603E Blade

3U IP system, 12 x Blades

T603E-12-IP-Blade



3U IP system, 14x Blades

T603E-14-IP-Blade



3U IP system, 8x Blades

T603E-8-IP-Blade

Management

1U Multiple machines manage system

T600

Optional

Power -48V DC input, 14x Blades





ASI input/output interface, 8x Blades





Media file-based storage, 2 x SSD



4K 2160
HEVC Group
H264 Group
MPEG2 Group
