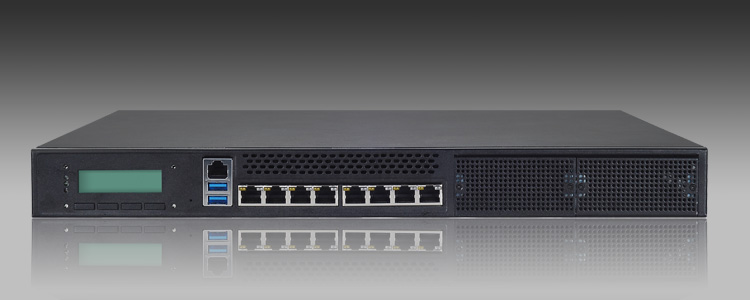

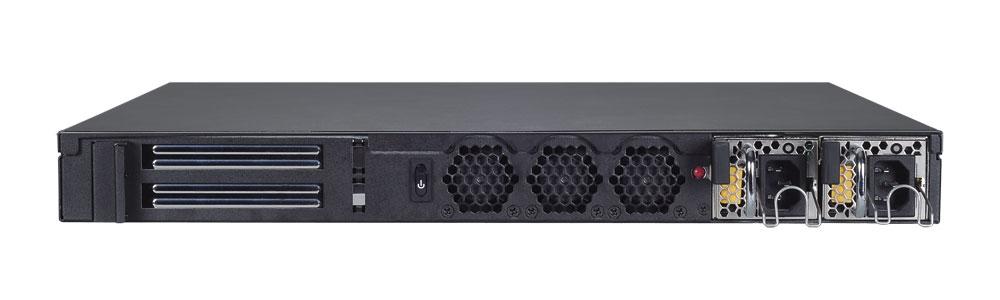

T603D live hevc decoder
T603D live hevc decoder

Input Stream card/module

I/O Interface Table



VIDEO OUTPUTS\MODEL

 SDI-6G

 SDI-6G+

 SDI-3G

SDI-HD

HDMI

6G-SDI 1x display card









6G-SDI 1x display card with analog audio









3G-SDI 2x display card









HD-SDI 4x display card









HDMII 4Kp30 1x display card









(Optional) GbE 8x NIC module

(Optional) GbE NIC fiber module

(Optional) DVB-ASI 4x In card

(Optional) Media storage, 2 x320GB

(Optional) 6G-SDI to HD-SDI 4x converter







System bootup screen shot & Web server

T603D live hevc encoder
T603D live hevc encoder

Technical Spec

CPU



Multi cores

Memory



8 GB

Video Display

Output

6G/3G/HD-SDI
SDI mirror (6G+)
HDMI
Component
S-Video
Composite

Audio

Output

Embedded SDI 16 channels HD/2K/4K, 8 Channels embedded in SD.
Embedded HDMI 8 channels SD/HD/4K
XLR Analog 4 Channels of professional balanced
AES/EBU 2 Channels unbalanced

Storage

OS/AP
Media

2.5" SSD x2 Redundant
2.5" SSD x2 Redundant (optional)

Ethernet IO, DVB IO



GbE x6
Fiber GbE x4 (optional)
ASI x4 (optional)
Console, IPMI management port

Display Monitor



VGA port

USB



3.0x2

OS



WES10-64

Application Software



Demultiplex, HEVC/H264/MPEG-2 decoder, Display

Compressed stream



HEVC/H264/MPEG-2 MPTS/SPTS over IP, UDP/RTP

Video resolution

Input

2160p30/29.97/25/24, 1080p60/50/30/29.97/25/24, 720p60/59.94/50, SD29.97/25

Video Decoding



HEVC 4:2:0 Main 8/10 profiles
HEVC 4:2:2 Main 10 profile
H.264 HP, MP, Hi422P
MPEG-2 MP, 422P

Audio Decoding



MPEG-2 AAC, Mono/Stereo PCM
MPEG-1 Layer II, Mono/Stereo PCM
Dolby Digital (AC-3),Dolby Digital Plus (EAC-3) (optional)

Redundant



N+M

Remote Management



Build-in Web Server HTTP, SNMP and command line

LCM



2 x 20 characters

Power Supply



300 Watts Redundant (1+1) Hot-Swap 100~ 240V AC input, 50-60HZ

LED



Power/Status/HDD

Switch



Power, Hardware Reset

System Fan



4 cm x3

Certificate



FCC class A /CE, ROHS Compliant

Working Environment

Temperature

0~40℃

Indoor

Humidity

5% ~ 90%, non-condensing



Vibration:

0.5G / 5 to 100 Hz



Shock

10G / 11ms in all axis



Physical

Dimension

431x 44x 468 mm

Net Weight        13Kg



*specification is subject to change without notice

System Order information

Product item

 Description

Order NO.

Basic T603D3

1U 6G-SDI system, 1 output display

T603D3-1-SDI-uHDp30



1U 6G-SDI system, 1 outputs display with analog audio

T603D3-1-SDI-uHDp30+



1U 3G-SDI system, 2 outputs display

T603D3-2-SDI-HDp60



1U HD-SDI system, 4 outputs display

T603D3-4-SDI-HDp30



1U HDMI1.4 system, 1 output display

T603D3-1-HDMI-uHDp30

Optional

Copper GbE NIC module, 8 inputs





NIC GbE fiber module, 4 inputs





DVB-ASI, 4 inputs stream`





Media storage, 2 x SSD





6G-SDI 4x to HD-SDI converter





HEVC 4:2:0 hardware decoder





Dolby Digital (AC-3), Dolby Digital Plus (EAC-3) or multi-PCM decoding



Management

1U Multiple machines manage system

T600

4k HEVC
