T603E live hevc encoder
T603E live hevc encoder

Input Stream card/module

I/O Interface Table



VIDEO OUTPUTS\MODEL

 SDI-3G

SDI-HD

HDMI-1080p60

3G-SDI 1x display card





HD-SDI 2x display card

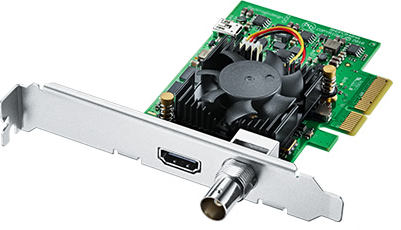

HDMI 1x display card





(Optional) GbE 8x NIC module

(Optional) GbE NIC card 4x

(Optional) DVB-ASI 4x In card

(Optional) Media storage, 2 x SSD

System bootup screen shot & Web server

T603D live hevc encoder
T603D live hevc encoder

Technical Spec

CPU



Multi cores

GPU



Build-in

Memory



4 GB

Video Display

Output

3G/HD-SD/HDMI-1080p60

Audio

Output

Embedded SDI 16 channels HD/2K/4K, 8 Channels embedded in SD
Embedded HDMI 8 channels

Storage

OS/AP
Media

2.5" SSD x2 Redundant
2.5" SSD x2 (optional)

Ethernet IO, DVB IO



GbE x6/rj45 + SFP x2
GbE x8 (optional)
ASI x4 (optional)
Console

Display Monitor



VGA port

USB



3.0x2

OS



WES10-64

Application Software



Demultiplex, HEVC/H264/MPEG-2 decoder, Display

Compressed stream



HEVC/H264/MPEG-2 MPTS/SPTS over IP, UDP/RTP

Video resolution

Input

1080p60/50/30/29.97/25/24, 720p60/59.94/50, SD29.97/25

Video Decoding



HEVC 4:2:0 Main 8/10 profile
HEVC 4:2:2 Main 10 profile
H.264 HP, MP, Hi422P
MPEG-2 MP, 422P

Audio Decoding



MPEG-2 AAC, Mono/Stereo PCM
MPEG-1 Layer II, Mono/Stereo PCM
Dolby Digital (AC-3), Dolby Digital Plus (EAC-3) (optional)

Redundant



N+M

Remote Management



Build-in Web Server HTTP, SNMP and command line

LCM



2 x 20 characters

Power Supply



250 Watts 100~ 240V AC input, 50-60HZ

LED



Power/Status/HDD

Switch



Power

System Fan



4 cm x3, 16500rpm @57.4dB

Certificate



FCC class A /CE, ROHS Compliant

Working Environment

Temperature

0~40℃

Indoor

Humidity

5% ~ 90%, non-condensing



Vibration:

0.5G / 5 to 100 Hz



Shock

10G / 11ms in all axis



Physical

Dimension

431x 44x 468 mm

*specification is subject to change without notice

System Order information

Product item

 Description

Order NO.

Basic T603D2

1U 3G-SDI system, 1 output display

T603D2-1-SDI-HDp60



1U HD-SDI system, 2 outputs display

T603D2-2-SDI-HDp30



1U HDMI system, 1 output display

T603D2-1-HDMI-HDp60

Optional

Copper GbE NIC module, 8 inputs





Copper GbE NIC card, 4 inputs





DVB-ASI, 4 inputs stream





Media storage, 2 x SSD





HEVC 4:2:0 hardware decoder





Dolby Digital (AC-3), Dolby Digital Plus (EAC-3) or multi-PCM decoding



Management

1U Multiple machines manage system

T600

4k HEVC
