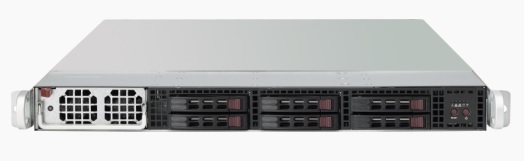

Live Ingest server T601-HD

Input Capture card

VIDEO INPUTS\MODEL	SDI-3G	SDI-VTR	HDMI-60	DVI-60
SDI-1080p60 2 Capture cards

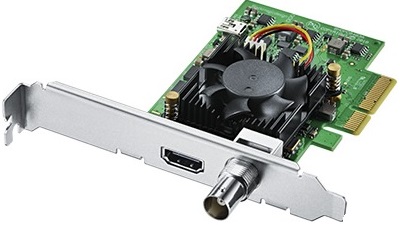

HDMI 1080p60 capture card
DVI 1080p60 capture card
(Optional) SDI-VTR 2 Capture cards
(Optional) external NAS storage

CPU		Multi cores
GPU		Build-in hardware
Memory		8 GB
Video capture Interface	Input	3G-SDI, HDMI x2, DVI x2 Color sample 4:2:2, YUV 8/10 bit
VTR deck control		RS422, Sony protocol (Optional)
Audio	Input	16 channels embedded in SDI 8 channels embedded in HDMI
Storage	OS/AP Media	2.5" 320GB x2 Redundant 2.5" 320GBx2 buffer External NAS share storage (Optional)
Ethernet IO		GbE x2/rj45 Console
USB		3.0x2
Display		VGA
OS		WES7-64
Application Software		Video Management (VMS) or Preview/Capture/Ingest VTR control and batch capture modes Print to tape File to File transcode
Time Code		LTC embedded SDI (VANC) as the metadata
Wrappers		J2C, MPG, M2P, AVI, F4V, MXF, MOV, MP4, TS, WMV, WAV, M4A, P2, AAF
Video Audio Essences		JPEG2000, Apple ProRes, Avid DNxHD, MPEG2, DV, DVCPRO, DVCPRO50, DVCPROHD, Uncompressed, H.264/AVC, AVC-Intra, XDCAM HD, XDCAM EX, IMX, VC-1, PCM, AAC, WMA
Power Supply		1200 Watts, 100~ 140V AC input, 50-60HZ, redundant 1400 Watts, 180~ 240V AC input, 50-60HZ, redundant
LED		Power/Status/HDD
Switch		Power , Hardware Reset
System Fan		4 cm x8
Certificate		FCC class A /CE, ROHS Compliant
Working Environment	Temperature	10~35℃	Indoor
	Humidity	8% ~ 90%, non-condensing
Physical	Dimension	430x 44x 724 mm

*specification is subject to change without notice
