T504P4

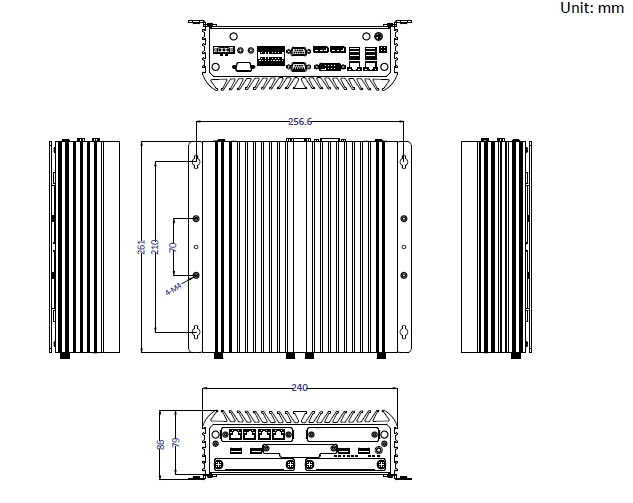

Dimension of the Drawing

T504P4 T504P4

Recording Calculation Table

T504P4

System bootup IP cameras VMS detection screen shot

T504P4

Technical Spec

Cameras



IP with PoE, expand total to 12 IP cameras

CPU



Multiple cores

GPU



Build-in

Memory



4 GB

Storage

OS/AP
Data

2 x 64GB SSD redundant
2 x2.5" HDD 1TB storages
External NAS or USB 3.5" storage (Optional)

USB



3.0x6, 2.0x2

Audio



MIC-in/Speaker-out

COM



RS232/422/485 x2
RS485 to 232 converter (Optional)

PoE



Mode A, 4 ports, IEEE802.3af/802.3at

Ethernet IO


GbE , support Wake-on LAN, PXE
GbE, support Wake-on LAN, PXE, for local view/ management

Wireless



Wi-Fi (Optional)

Display


DVI
DPx2, total 3 independent displays

Alarm



DI x8, DO x8

OS



Win10 -64

Application Software



VMS engine, Recording/Playback/Live view
RemoteBrowser view/Mobile device clients
PSIM application software (Optional)
ANPR/LPR (Optional)
Face Recognition (Optional)

Recording rate



Max 200Mbits/second

API



Digital IO or Watchdog sample code

Shock/Vibration



50G half sine 11ms / HDD 1Gms

Power Supply

Input

9~48V DC, 3 pin terminal block , AC to DC adapter 180W

Power Protection



Over Voltage, Over Current, Reverse

LED



Power on/off, HDD, Ethernet

Certificate



FCC class A /CE, ROHS Compliant

Working Environment

Temperature

-25~70℃

Indoor or outdoor

Humidity

10% ~ 95%, non-condensing



Physical

Dimension


240(W)x 79(H)x 261(D) mm

Net Weight       8Kg



*specification is subject to change without notice

Order information

Product item

 Description

Order NO.

Basic

4 ports POE with VMS or PSIM software, power adapter

T504-POE-4

Optional

NAS storage





Wi-Fi wireless





RS485 to 232 converter





PSIM application software





ANPR/LPR application software





Face Recognition application software
