Video Server

Cameras

Max 16 Analog

Video/Audio Capture

16 channels analog CVBS or
16 channels H264 hardware compressed 480fps @NTSC or 400fps@PAL or
2 channels HD-SDI in + 2 channels HD-SDI out configurable
16 channels mono audio compressed

CPU

Multiple cores

GPU

Memory

4 GB

Storage

OS/AP
Media Video

2 x 64GB SSD redundant
4 x2.5" 320GB/500GB/1TB HDD storages (2 hot-swap in front of chassis , 2 fixed at internal) Raid 0,1,5,10 or
External NAS 3.5" storage (Optional)

USB

3.0x6, 2.0x2

Audio

MIC-in/Speaker-out

COM

RS232/422/485 x2
RS485 to 232 converter (Optional)

Ethernet IO

GbE1, support Wake-on LAN, PXE
GbE2, support Wake-on LAN, PXE

Wi-Fi (Optional), 4G/LTE module (Optional)

Display

DVI
DPx2, total 3 independent displays

Alarm

DI x8, DO x8

OS

Win10 -64

Application Software

MPEG2/H264/H265 Video processing, capture/encode/decode schema
VMS engine, Recording/Playback/Live view
RemoteBrowser view/Mobile device clients
PSIM application software (Optional)
ANPR/LPR (Optional)
Face Recognition (Optional)

API

Digital IO or Watchdog sample code

Shock/Vibration

Power Supply

Input

9~48V DC, 3 pin terminal block or AC to DC adapter 150W

Power Protection

Over Voltage, Over Current, Reverse

LED

Power on/off, HDD, Ethernet

Certificate

FCC class A /CE, ROHS Compliant

Working Environment

Temperature

0~70℃

Indoor or outdoor

Humidity

10% ~ 95%, non-condensing

Physical

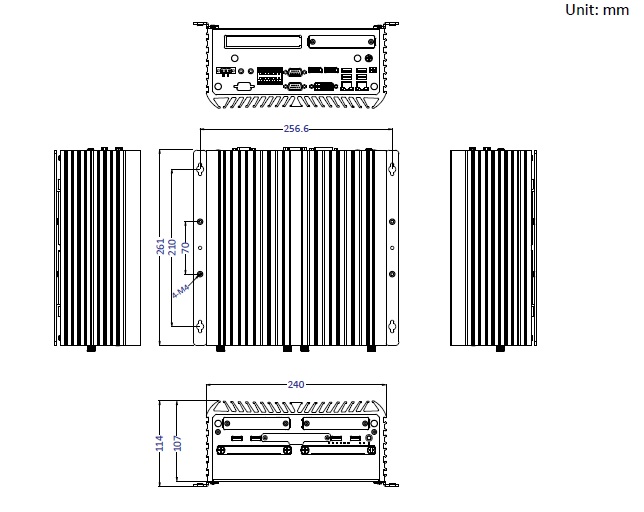

Dimension

240(W)x 107(H)x 261(D) mm

Net Weight       8Kg

 Description

Order NO.

Basic

16 channels capture card with Video Processing software

T504-Analog-16-1

16 channels capture card with VMS software

T504-Analog-16-2

4 channels HD SDI-in/out card with Video Processing software

T504-Digital -4-2

HDD 4x 320GB/500GB/1TB storage

NAS storage

Wi-Fi wireless

4G/LTE module

RS485 to 232 converter

PSIM application software

ANPR/LPR application software

Face Recognition application software
