Industrial Network Communication Solution

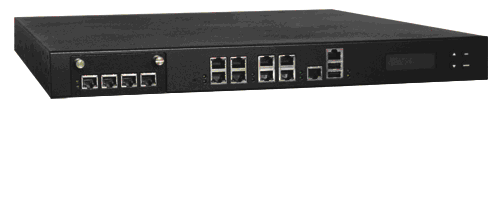

    Model#4010 1u Rack-mount System box

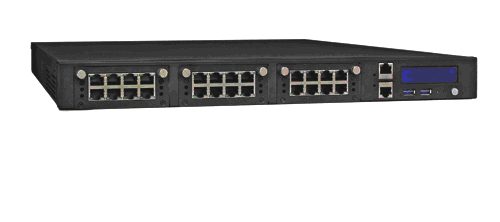

    Model#4020 1u Rack-mount System box

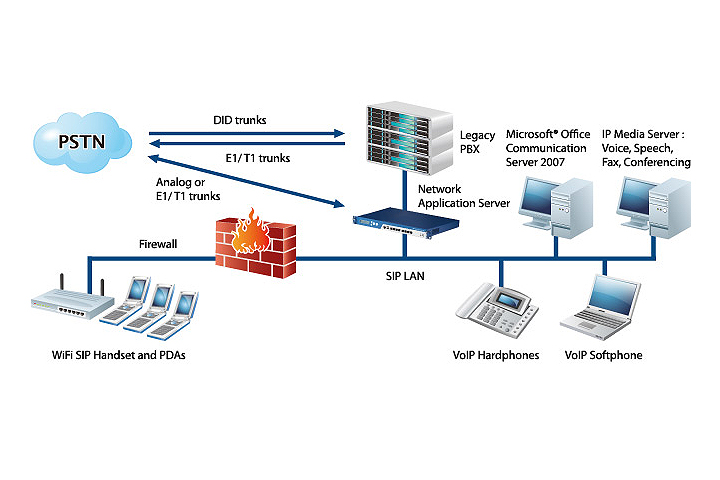

Application

Networking server
ISP server or Telecom solution
IPTV gateway or Live streaming encoder/trans-coder
Medical DICOM or PACS integration

Benefits

Different scenario choose the spec, pay the components really need
Provides the added value of server grade remote monitor and
control capability for you appliance

Product Solution Features

Flexible interface: Copper GbE or Fiber or 10G Fiber or cave creek
Support wide range, multiple cores multiple threads Intel CPU
Hardware Accelerate GPU
Support Intel DPDK
Optional GbE speed IPMI v2.0
LAN bypass
Redundant AC power or 48V DC in
1U/2U rack-mount chassis
24x7 365 days operation
Customization is available
Long-term supply

Technical Spec

Networking



GbEx8 Copper, IPMI management(Optional) or
GbE x4 Copper + GbE x4 Fiber or
GbE x8 Fiber or
10GbE x4 Fiber
Bypass: 2 segment

CPU



up to 4 cores/8 threads (#4010,# 4020 )

GPU



Hardware (#4010,# 4020 )

Memory



8/16/32/64/128 GB

Storage

OS/AP

Enterprise 3.5” HDD or 2.5" SSD

USB



2.0 x2 (#4010)
3.0 x2 (#4020)

Management



System Console, 2*5 pin header

Display



VGA 2*5 pin header

LCD module



2x16 characters
128x32/64 graphics

OS



Linux Kernel

Application Software



Depends on customer's environment

MTBF (hours)



71,000

Power Supply



275Watts Redundant (1+1) Hot-Swap 100~ 240V AC input, 50-60HZ or 250 Watts DC, 48V in

System Fan



x3

LED



Power, HDD

Certificate



FCC class A /CE/UL, ROHS Compliant

Warranty



3 years

Working Environment

Temperature

0~40℃

Indoor

Humidity

20% ~ 90%, non-condensing



Physical

Dimension

438(W)x 44(H)x 509(D) mm (#4010)
435(W)x 44(H)x 448(D) mm (#4020)

Net Weight       12.8Kg



*specification is subject to change without notice

System Order information


Product item

 Description

Order NO.

Basic#4010

1U GbE, Copper 8 ports

T4010-GbE-8-0000



1U GbE, Copper 4 ports + 8 Fiber ports

T4010-GbE-4-SFP-8



1U 10GbE, Fiber 4 ports

T4010-10GbE-4-SFP



1U GbE, Cave Creek Copper 4 ports

T4010-GbE-4-Creek

Basic#4020

1U GbE, Copper 8 ports

T4020-GbE-8-0000



1U GbE, Fiber 8 ports

T4020-GbE-0-SFP-8



1U GbE, Copper 4 ports + 4 Fiber ports

T4020-GbE-4-SFP-4



1U 10GbE, Fiber 4 ports

T4020-10GbE-4-SFP



1U GbE, Cave Creek Copper 4 ports

T4020-GbE-4-Creek



1U GbE, Copper 24 ports

T4020-GbE-24-0000
