Industrial Motion Control Solution
Touch LCD + Fanless Motion Controller Equipment
Application

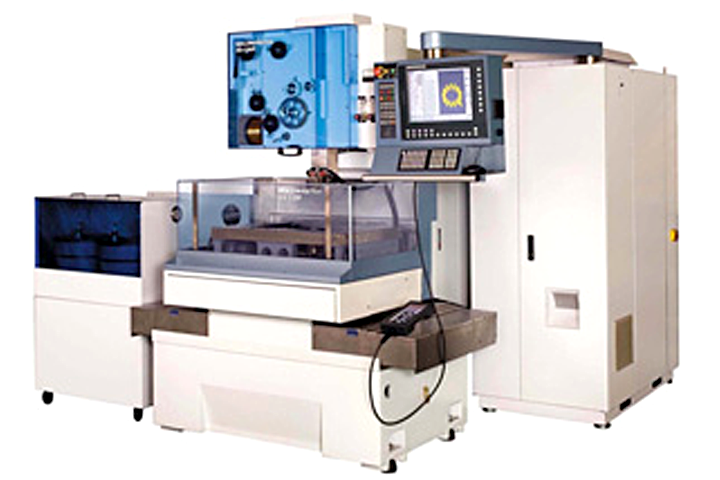

| CNC, Laser Cutting and Engraving |
| Robot control, Pick and Place, AOI |
| Industrial Sewing Machine |
| Component Inspection |
| Semiconductor Manufacturing |
| Food and Beverage Inspection |
| Spinner |
| Transfer Machinery |
| Fix-pitch Stamping Machinery |
| Load/Unload |
Benefits
| Save the total development/production cost |
| Touch LCD + 4/8 axis + AP Motion Controller integration in a system |
Product Solution Features
| Cost effective solution for Industrial-grade PC-base machine automation |
| Support 4/8 axis machine controller |
| Build-in motion control card interface to terminal board |
| General terminal board support Sanyo/Mitsubishi/Panasonic/Yaskawa/Delta/Fuji/Teco Servo or Stepper Amplifier |
| Extend 16 In/16 out module, max to 256 In/256 out at terminal board |
| Fan-less Compact footprint size |
| Wide range DC voltage input, low power consumption |
| Long-term supply |
| Provide the Library, sample code for AP development |
| Customization is available |
Technical Spec

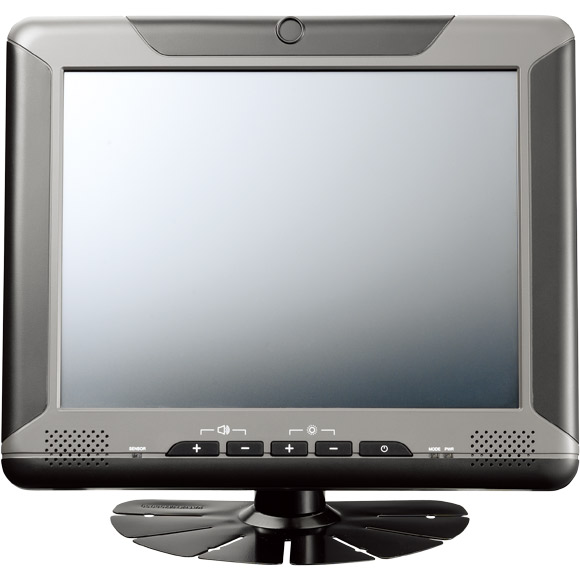

(A) Touch LCD
Size |
|
8” SVGA TFT |
Resolution Color |
|
800x600, 256K |
Touch |
|
4 wire resistant |
Brightness |
|
400 cd/m2 |
Dimming |
|
Automatic or Manual |
Contrast |
|
500:1 |
Ingress Protection |
|
Front panel IP54 |
IO |
|
VGA, USB |
Indicates |
|
Front LED, Speakers(1.2W) |
Power Supply |
|
6V~36V DC input, power ignition |
Power Consumption |
|
12V,15W |
Physical |
Dimension |
207(W)x 173(H)x 37(D) mm |
Net Weight 3Kg |
||

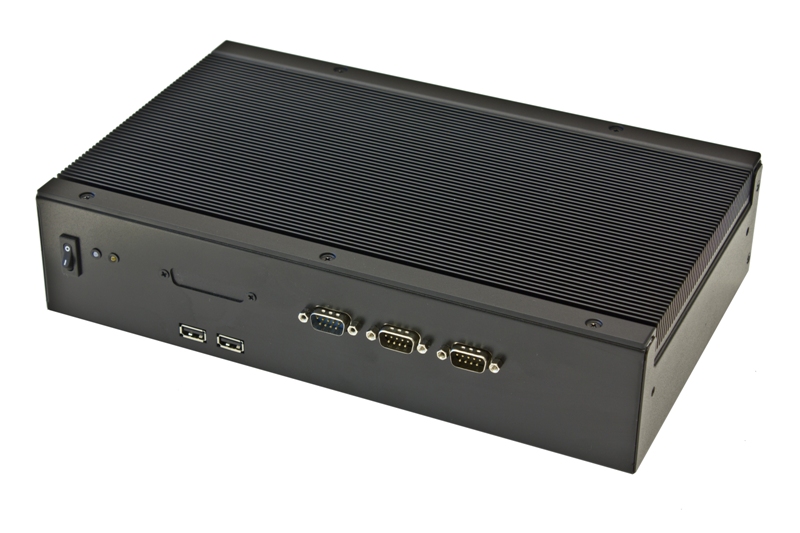

(B) System
Add-on Card |
|
DSP/FPGA Motion Controller 4/8 axis |
|
Interface |
|
SCSI connector to Terminal board |
|
CPU |
|
Mobile 2 cores, 4 threads |
|
Memory |
|
2 GB |
|
Storage |
OS/AP |
SLC, 2.5” SSD 32GB (Bootable) |
|
COM |
|
RS232x4 (COM1, external) |
|
Video Display |
|
VGA, DVI, HDMI |
|
Video Resolution |
|
VGA 2048*1536 |
|
Audio |
Input |
MIC, Line-in |
|
Ethernet IO |
|
GbE LAN port x2 |
|
USB2.0 |
|
x4 |
|
Input device |
|
PS2 KeyBoard, Mouse |
|
OS |
|
Desktop Windows or Windows Embedded Standard, WES2009 license |
|
Application Software |
|
Library, Sample Code, Software Development support |
|
MTBF (hours) |
|
56,000 |
|
Power Supply |
|
DC 6V~34V input, optional 80W AC to DC power adapter |
|
LED |
|
Power, HDD, IP |
|
Certificate |
|
FCC class A /CE, ROHS Compliant |
|
Working Environment |
Temperature |
0~60℃ |
Indoor |
Humidity |
10% ~ 80%, non-condensing |
|
|
Physical |
Dimension |
311(W)x 69(H)x 240(D)mm |
|
Net Weight 6Kg |
|
||

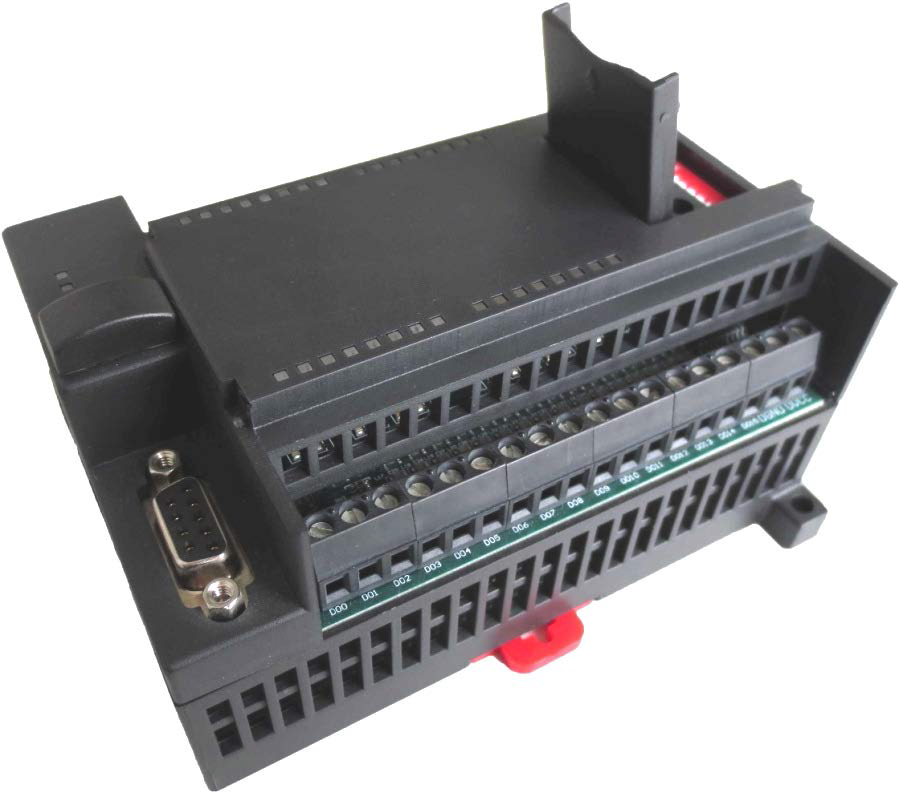

(C) Digital IN/OUT
Input ports |
16 |
Input isolation |
Optical coupling isolation |
Input filter |
Hardware filtering and software filtering |
| Output ports | 16 |
Output isolation |
Optical coupling isolation |
Output forms |
Open collector |
| Output driving | 200mA per port |
| Communication | 9 pin connector to terminal board |
| Extend | Daisy-chain |
| Power Supply | 24V DC |
| Dimension | 120(W)x 63(H)x 80(D) mm |
| Net Weight | 280g |
System Order information
Product item |
Description |
Order NO. |
Basic |
4 axis machine System |
T604-4-S-0000 |
|
8 axis machine System |
T604-8-S-0000 |
LCD |
8” Touch, 12V DC power adapter, 5m VGA, USB cable |
VMD2002-B |
Accessory |
4 axis Terminal board, 16 in/16 out ,1.5m Cable |
|
|
8 axis Terminal board, 16 in/16 out ,1.5m Cable |
|
Optional |
System 80W AC to DC Power Adapter |
|
Extend digital module 16 in/16 out |
ACC-S1616D |
